Automotive OBD2 Scanner OBD Code Reader Car Check Engine Fault Diagnostic Tool

Instantly diagnose engine problems with the V320 real-time fault reading, wide vehicle compatibility, and professional OBD2/EOBD diagnostics right in your hands.

How to Use — Diagnostic Steps

1. Locate the OBD Port
   Usually found under the dashboard, above the pedals.
2. Connect the V320 Scanner
   Use the included cable to plug it directly into the OBD port.
3. Start the Vehicle
   Turn the key to ignition or start the engine.
4. Open the OBD/EOBD Menu
   Navigate from the main menu → OBD/EOBD → press OK.
5. Select Test Functions
   Use the directional keys to choose:
   • Voltage test
   • Fault codes
   • Data stream
   • I/M readiness
   • Performance test
6. Run Diagnostics
   Press OK again to execute and view results.

Settings Menu (Customization)

From Product Settings, you can adjust:

Language

Choose any supported language.

Units Switch between: Imperial (mph, °F) , Metric (km/h, °C)

Display Settings

Adjust the backlight, contrast, and sound.

Save & Exit

Save all custom settings and return to the main menu.

Menu & Key Functions Overview

Main Menu Options

OBD/EOBD diagnostics

Performance test

Data stream

Fault codes

I/M readiness

Voltage detection

Product settings

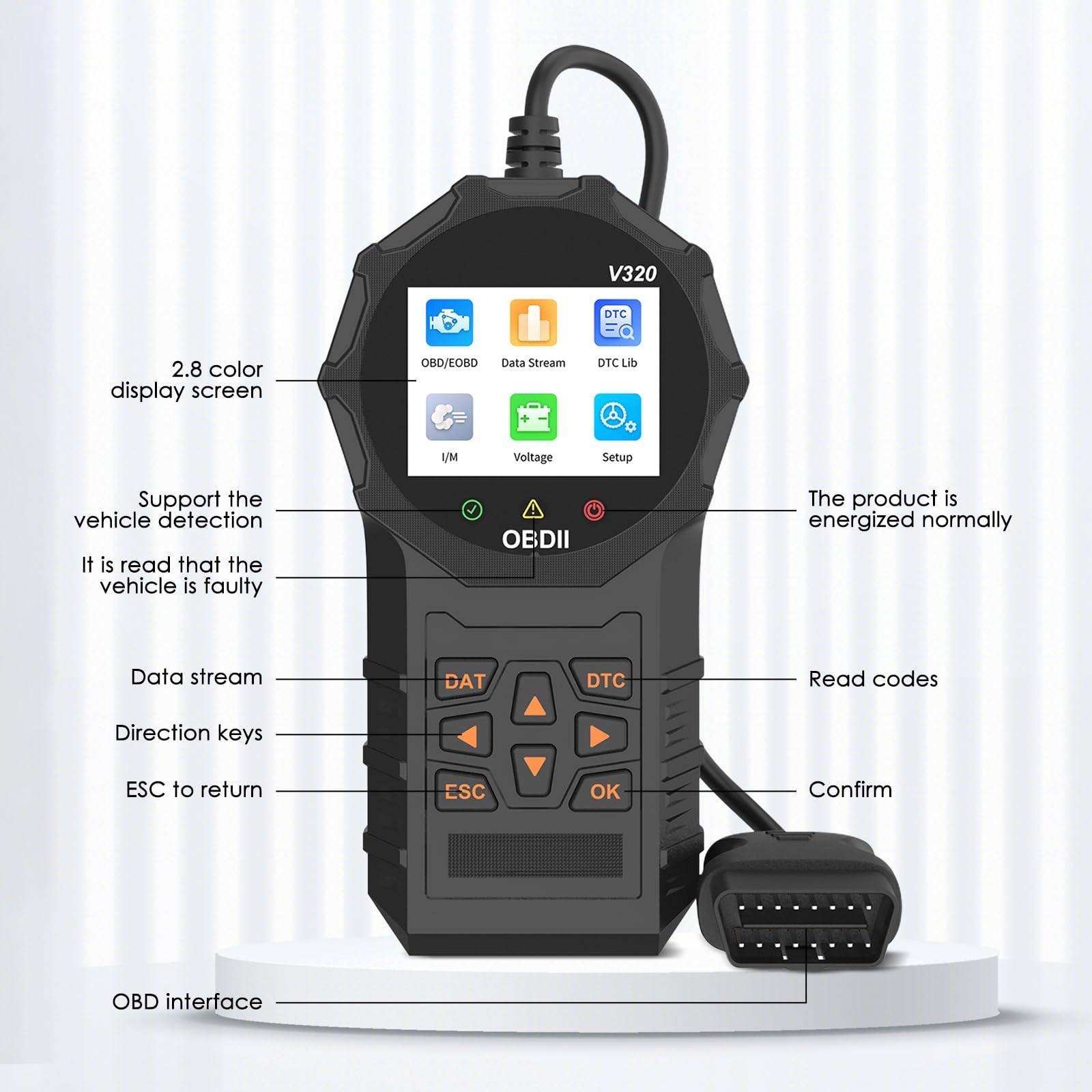

Physical Button Functions

Navigation Keys – browse menus

Read Code Key – instantly read codes

OK/Confirm Key – confirm selection

Exit/Back Key – return to previous menu

Indicator Lights

Green – vehicle supports diagnostics

Yellow – fault detected

Red – device powered normally

Product Specifications

Full Package Includes

1× V320 Diagnostic Scanner

1× Storage Bag

1× English User Manual

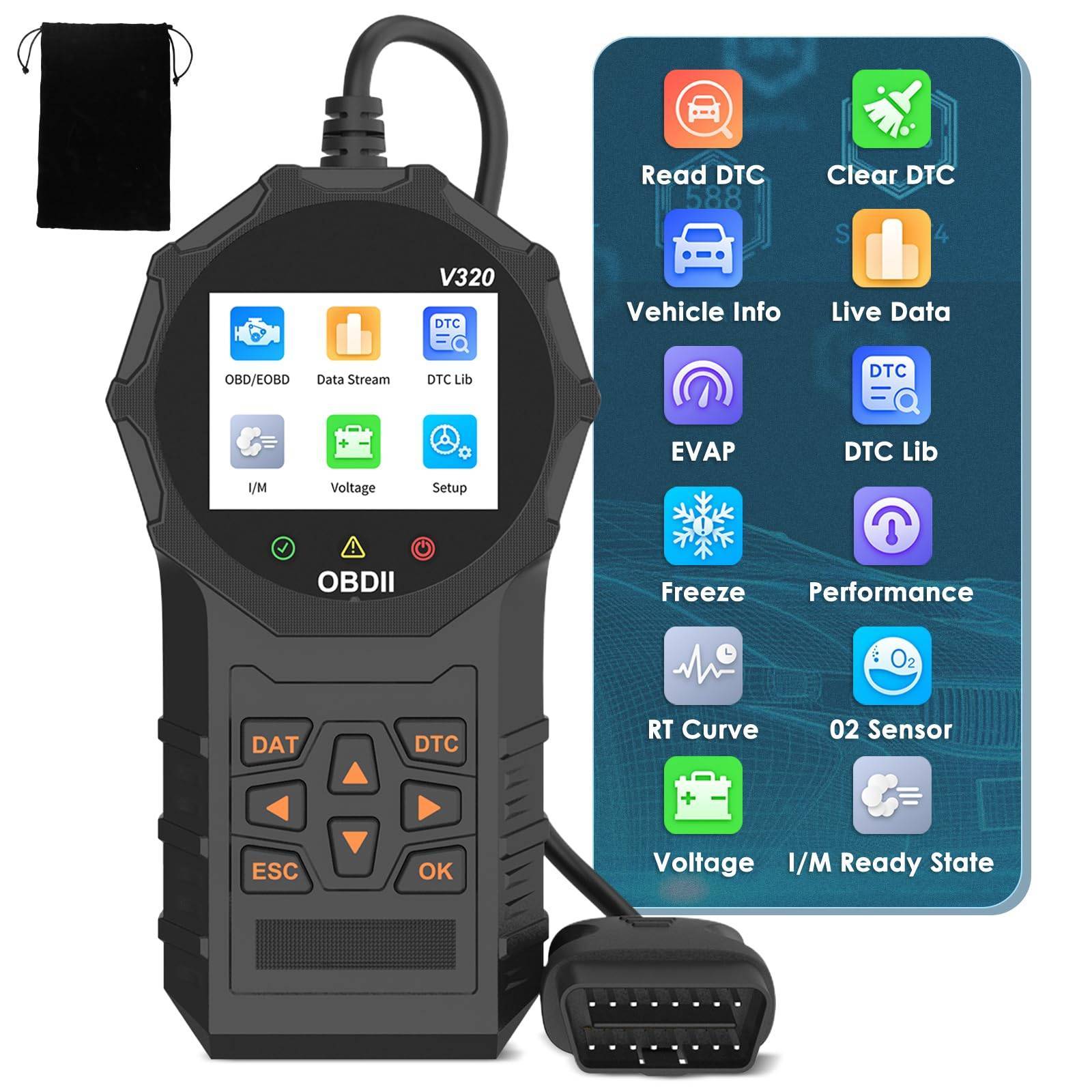

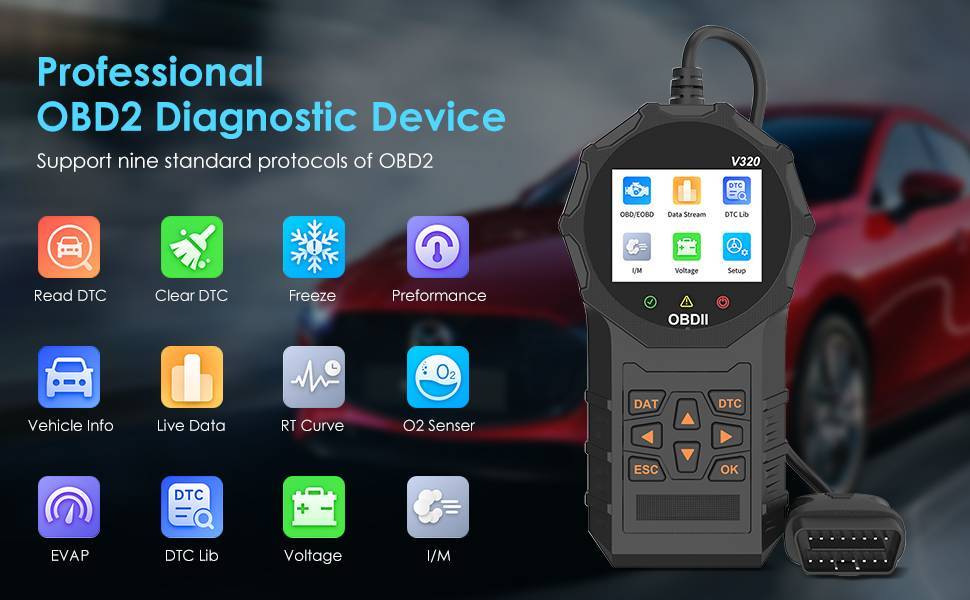

V320 OBD2 Diagnostic Scanner – Full System Code Reader

The V320 OBD2 Diagnostic Tool is a powerful, user-friendly scanner designed to help drivers quickly identify, analyze, and clear vehicle faults. It supports nine OBD II/EOBD protocols, works with all OBD II–compliant vehicles, and includes advanced diagnostic functions usually found in higher-end tools.

Key Diagnostic Features

OBD II/EOBD Protocol Support

The V320 supports nine standard automotive protocols, ensuring compatibility with most car models:

SAE J1850 PWM – A communication protocol that uses pulse width modulation signals with a transmission rate of 41.6Kbaud.

SAE J1850 VPW – A communication protocol that uses voltage pulse width modulation signals with a transmission rate of 10.4Kbaud.

ISO 9141-2 – A protocol that uses a 5 baud rate for initialization, followed by communication at a rate of 10.4Kbaud.

ISO 14230-4 KWP – A protocol that uses a 5 baud rate for initialization, followed by communication at a rate of 10.4Kbaud.

ISO 14230-4 KWP –  Same as above, but with fast initialization.

ISO 15765-4 CAN (11bit ID, 500Kbaud) – A CAN bus communication protocol that uses an 11-bit identifier and a 500Kbaud rate.

ISO 15765-4 CAN (29bit ID, 500Kbaud) – Same as above, but with a 29-bit identifier.

ISO 15765-4 CAN (11bit ID, 250Kbaud) – A CAN bus communication protocol that uses an 11-bit identifier and a 250Kbaud rate.

ISO 15765-4 CAN (29bit ID, 250Kbaud) – Same as above, but with a 29-bit identifier.

Complete Diagnostic Functions

Battery Voltage Test

Displays real-time car battery voltage to assess battery health.

Fault Code Reading & Clearing

Reads stored, pending, and permanent fault codes and allows clearing after repairs.

Real-Time Data Stream

Live data monitoring, including: Engine RPM

Coolant temperature

Fuel consumption

Air flow

Throttle position and more

Freeze Frame Data

Stores vehicle conditions at the moment a fault occurs for deeper analysis.

MIL (Check Engine Light) Status

Indicates whether engine-related monitors are functioning properly.

Oxygen Sensor Test

Evaluates the oxygen sensor’s performance for accurate fuel and emissions management.

Fuel Evaporation System Test (Mode 8)

Checks EVAP system integrity to identify vapor leaks.

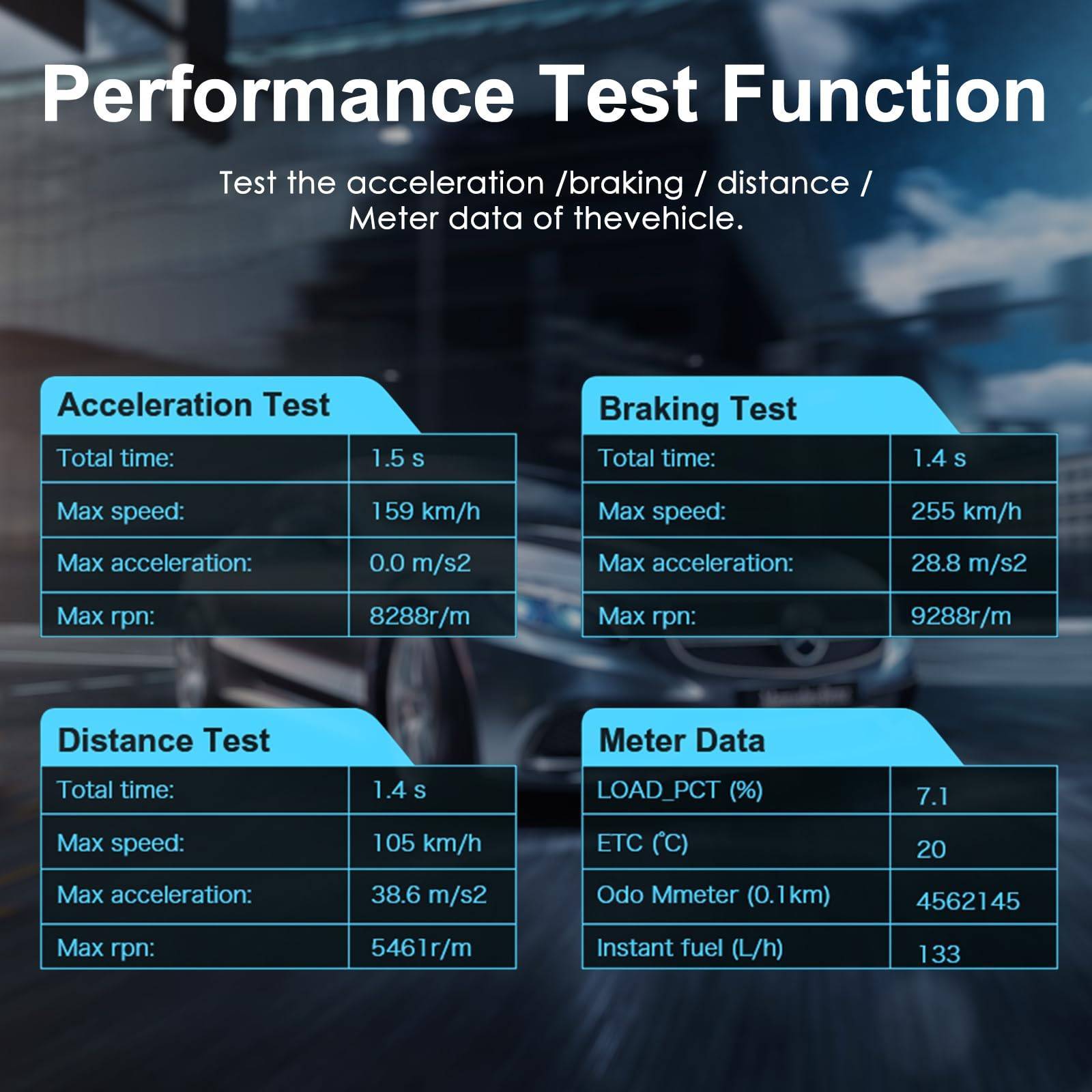

Performance Testing

Test vehicle acceleration, braking distance, and overall drive performance.

Vehicle Information Reading

Reads essential data such as: VIN, Engine model, ECU information

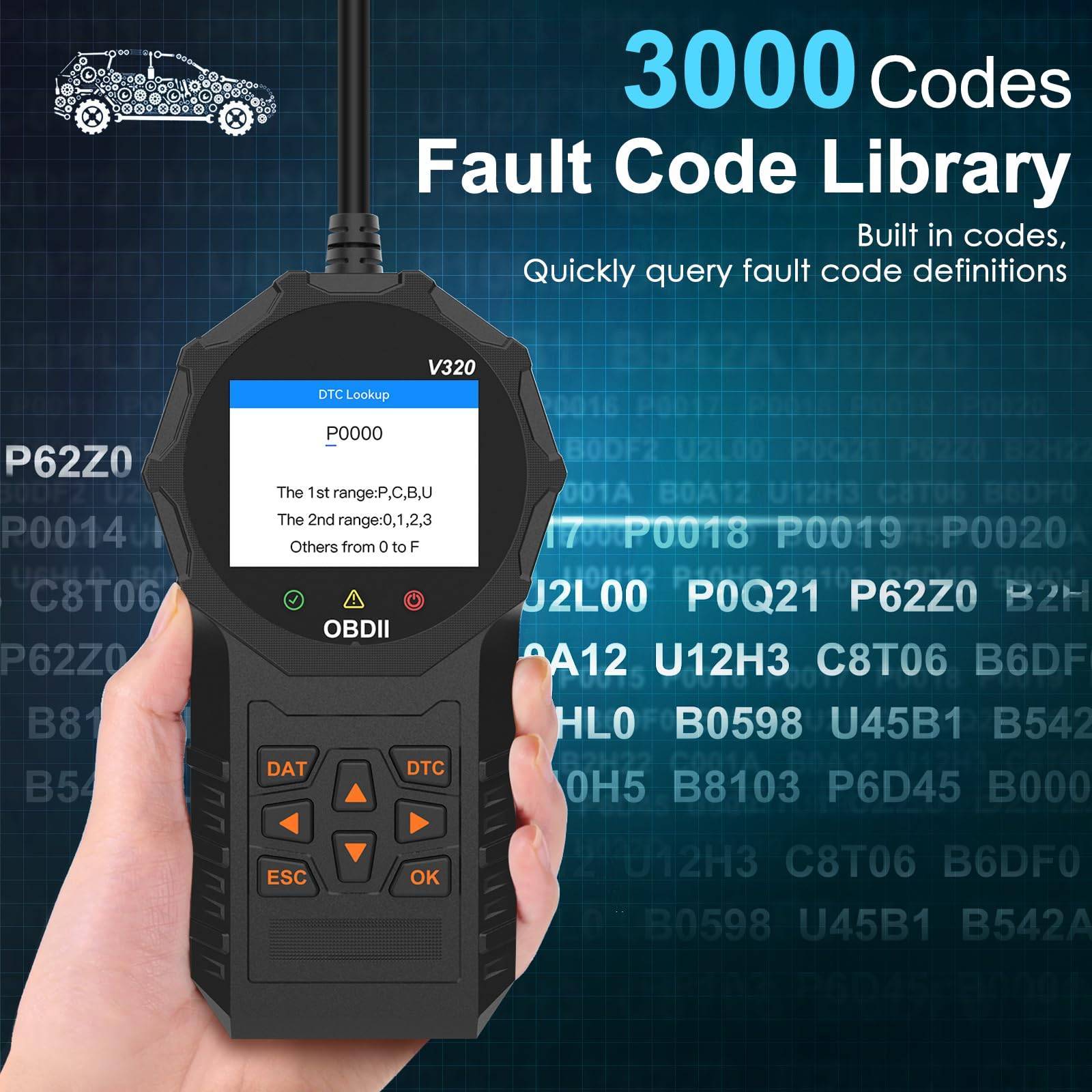

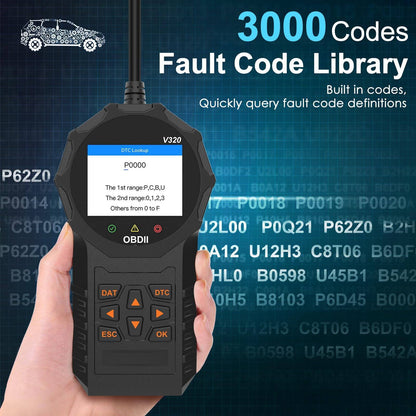

Fault Code Information Lookup

Offers clear explanations for diagnostic trouble codes (DTCs).

Data Playback

Allows reviewing saved fault codes, freeze frames, and data streams.

Multi-Language Interface

Supports 8 languages:  English, German, French, Spanish, Italian, Russian, Dutch, Chinese

Important Notice

This product is available only within the continental United States.
Not available for delivery to: Hawaii, Alaska, Puerto Rico, Guam, Virgin Islands, American Samoa, Northern Mariana Islands, Palau, Micronesia, Marshall Islands, AA/AE/AP military addresses, U.S. Minor Outlying Islands, and U.S. Miscellaneous Pacific Islands.

Additional Notes

Due to monitor differences, product color may vary slightly.

Allow 1–2 cm deviation due to manual measurement.

Not compatible with hybrid, EV, or vehicles that do not follow the OBD2 protocol.

Warranty excludes misuse, improper installation, unauthorized modification, or physical damage.
